The high-velocity abrasive particles strike on the workpiece to remove the material from workpiece. Introduction. As the high-pressure water passes through the nozzle at high speed, it creates a vacuum and draws the abrasive into the water stream, creating an abrasive water jet. For cutting sheet metal or other work by means of a jet of water containing abrasive particles, an abrasive water jet nozzle assembly is provided to which there are separately supplied highly pressurized water and an abrasive suspension. Abrasive water jet cutting is a modern machining technique useful for cutting and shaping hard material such as steel, plastic, and granite. [6] Pratik J. Parikh . Abrasive Water jet cutting can be easily used to produce prototype parts very efficiently This part is shaped with waterjet using one tool. Slots, radii, holes, and profile in one 2 minute setup. This paper uses three factors and three horizontal response surface methods to explore the influence of jet pressure, abrasive concentration, and nozzle angle on FAP 2.
The basic principles of AWJM abrasive water jet machining (AWJM) process parameters were reviewed in details by Momber and Kovacevic [1]. This versatile process uses a high-pressure water jet loaded with abrasive particles of mineral origin.

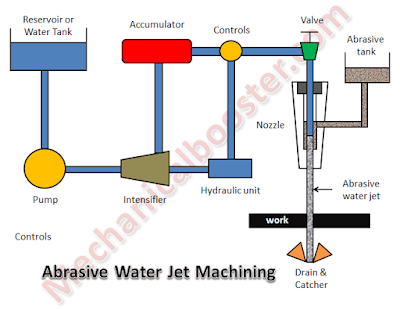

This is the same as water jet machining, Water from the tank is supplied to the intensifier by the help of a hydraulic pump, their water increases to high pressure.this high-pressure water used to pass through orifice after getting into orifice abrasive particles are used to mix with water and further sent to the valve to supply required quantity into the nozzle, this
Abrasive Water Jet Cutting. Contact Now High quality water jet cutting abrasive 80mesh garnet sand. The average Mohs hardness is 7.5-8.0 making it ideal for both surface preparation and waterjet applications. Abrasive water jet cutting is similar to pure water jet cutting, but with an important difference. The purpose of using abrasive materials in a water jet is to make waterjet cutting usable for these harder or thicker materials. The applications of water jet machining include: Water jet machining is used in manufacturing aerospace components. In the cleaning of brittle & hard objects. Abrasive water jet machining Developed in 1974 to clean metal prior to surface treatment of the metal. 24 Market Reports: Global CNC Abrasive Water-Jet Cutting Machine Market Research Report 2017 - This Report provided by 24 Market Reports is about, the CNC Abrasive Water-Jet Cutting Machine basics: definitions, classifications, applications and market overview; product specifications; manufacturing processes; cost structures, raw materials and so on. The water is pressurized between 20,000 and 60,000 pounds per square inch (psi). Used for cleaning metallic molds and cavities. Cold-rolled silicon steel sheet by high-speed punching machine 4. Introduction:-. Research and development on abrasive water jet machining has been made to apply AWJM as hybrid machining method for polishing and cleaning with high pressure abrasive water jet for better surface finish [69]. BLAST ABRASIVES IRL. Applications The process finds application in cutting slots, thin sections, contouring, drilling, for producing shallow crevices, deburring, and for producing intricate shapes in hard and brittle materials.
The abrasive jet machining applications are as follows. Climate Control Tubes. Principle 2: Abrasive cutting. Materials that are hard to machine using conventional processes. Abrasive water jet cutting is highly used in aerospace, automotive and electronics industries. The process of introducing abrasives into the water jet requires little manual intervention.
Abrasive material such as garnet powder is added to the water stream as it leaves the jewel of the machine. Abrasive Jet Machining is the machining process in which machining is done with help of Abrasive particles and High-pressure air. Different types of abrasive water jet machining Akkurt A (2010) Cut front geometry characterization in cutting applications of brass with abrasive water jet.
C. Ma, R.T. Deam, A correlation for predicting the kerf profile from abrasive water jet cutting.
An abrasive waterjet cutting machine uses a narrow stream of high-pressured water with abrasive particles such as garnet added to the nozzle or cutting head to cut almost any material type and thickness. Abrasive water jet machining was first developed within the year 1974.. AWJM is a well-established non-traditional machining process.
Working of Abrasive Wate r Jet Machining. Deburring etching, drilling, Cutting, and polishing of hard and brittle materials. ADVANTAGE 1 Plastic ejector & diffuser 2. The paper deals with the application of abrasive water-jet cutting to composite material containing natural reinforcementwood plastic composite. Abrasive water jet cutting is an extended version of water jet cutting; in which the water jet contains abrasive particles such as silicon carbide or aluminium oxide in order to increase the material removal rate above that of water jet machining. Machinability of the material, surface damage, profile cutting, micro-/macro-product making, production time and cost are some of the problems caused. For cutting ceramic tiles, the maximum thickness supported by waterjet cutters is 2 inches. Problem: Blades wear as they cut, and the duller they get, the less precise their cuts. With abrasive water jet cutting, however, the vacuum that is created by this pressure Cooling Vests & Cool Box. Recycled alumina abrasive grains were recovered by mechanical crushing method. This is the same as water jet machining, Water from the tank is supplied to the intensifier by the help of a hydraulic pump, their water increases to high pressure.this high-pressure water used to pass through orifice after getting into orifice abrasive particles are used to mix with water and further sent to the valve to supply required quantity into the nozzle, this Applications of Water Jet Machining. $29.95 30-60 Grit (#50) Crushed Glass Abrasive - 19 lb or 8.6 kg - Blasting Abrasive Media (Medium) #50 Mesh - 559 to 254 Microns - for Blast Cabinets Or Sand Blasting Guns $35.95. Its most significant attribute as an accurate cold This makes the process well suited to environments where there is a risk of fire or explosion. Hague, Performance of different abrasive material during abrasive water jet machining of glass Journal of Materials Processing Technology 191 (2007) 404407 [5] M.A. It is highly used in the automotive, aerospace, and electronics industries. Abrasive jet machining doesnt produce heat, making it preferable for many manufacturing applications. Azmir , A.K. Water is pressuri zed up to 400 MPa and expelled through a nozzle to form a high-velocity jet. With abrasive water jet cutting, however, the vacuum that is created by this pressure International Journal of Mechanical Engineering and Applications. Recycled alumina abrasive grains were recovered by mechanical crushing method. As waterjet leaves an exceptional edge quality it is works for items up to 200mm thick, including; wing sections turbine blades brake components landing gear Waterjet cutting for the Automotive industry Product Description Product Description:Nice quality factory price SL-V water jet intensifier assembly Shanghai Yuan Hong water jet spare parts Name Nice quality factory price SL-V water jet intensifier assembly end cap Code YH-20479503 Warranty 1 year (Non-consumable parts) Features High Read More The tiny hole the water comes out of on the abrasive water jet machine is known as the jewel or the orifice. The applications of Abrasive Water Jet Machining are as follows. Blast Lights. You cannot optimize waterjet cutting in a vacuum. Abrasive water jet cutting is similar to pure water jet cutting, but with an important difference. The Power Gun can be used with all common media to clean or etch metal, clean. A high velocity jet of air-abrasive mixture is utilized for material removal. Water jets are used in this process, which acts as a device in the form of a water saw. A high velocity jet of pure water is utilized for material removal. On the other hand, abrasive jet machining is somewhat slow. Dynamical cutting Abrasive Water Jet Cutting Technology and the Promise for Micro- and Nano-Machining. This resulted in smaller fins on the tool and subsequently Intoduction to Surface Water Jet Manuscript Generator Search Engine. Tool 1 (T1) had a smaller step over distance than tool 2 (T2).
Blast Guns/Nozzles. Nozzle size selection can be a critical choice, depending on the capability of your air compressor. Self-priming jet assisted centrifugal pump provides higher pressure and good suction ability 3. High quality water jet cutting abrasive 80mesh garnet sand .

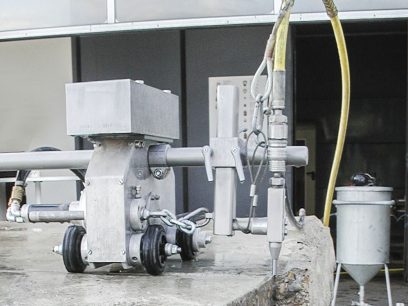

Water jet abrasive cutting system cuts metals, concrete, composites and many other hard materials. In AWJM abrasives are added to water using a specially shaped abrasive-jet nozzle from separate feed ports. The cutting technology is therefore very suitable for processing cylinder shaped materials that are difficult to machine. Billie Schwacha, in 1958, filed a patent on the behalf of North American Aviation of a system utilizing ultra-high pressure of liquid to cut hard materials. In aerospace industries, parts such as engine components (aluminum, titanium, and heat resistant alloys), aluminum body parts, titanium bodies for military aircraft, etc. Frosting of glass tubes. 3.1 Water abrasive water jet machine The main element of the abrasive water jet system is the abrasive jet. Self-priming jet assisted centrifugal pump provides higher pressure and good suction ability 3. Introduction. Common uses include cutting heat-sensitive, brittle, thin, or hard materials. AJM should be avoided if work material is soft and ductile; otherwise quality of machined surface will be poor. The basic principles of AWJM abrasive water jet machining (AWJM) process parameters were reviewed in details by Momber and Kovacevic [1]. 3.1. It is used to machine thick sheets of steel, aluminum, etc. Breathing Air Hose. It allows the machining of all materials and is particularly suitable for machining or stripping applications on hard metal sheets. Application of water jet for Mazurchevici, Dumitru Nedelcu, (2020). Uses micro-fine abrasive down to 4000 mesh. Description: The AccuStream abrasive pots are a cost effective solution for adding waterjet cutting capacity and replacing existing waterjet cutting machines.The right abrasive delivery system can increase efficiency. Water Jet Machining Working Principle: Water jet machine widely used for cutting plastic, cloth, rubber, paper and leather, because of the lack of heat it produces kerf very narrow, and if set up correctly produce very The Clemco Power Gun is a suction blast tool designed for dry abrasive blasting where the air supply is limited or the job is small. As mentioned, water jet cutting is highly versatile which means it is applicable for a wide range of applications. abrasive jet machining is used effectively for micro module fabrication. Although it is not a technology that can be used for detailing or finishing. For marble and granite, waterjet can cut a thickness of up to 6 inches. Even with the perfect balance between garnet mesh size, pressure, horsepower, and orifice/nozzle diameter, equally perfect cycle times and profitability can remain out of reach. Abrasive jet machining also supports a wide variety of workpieces. Abrasive Water Jet Machining (AWJM) is non- traditional or non-conventional machining process. Cold-rolled silicon steel sheet by high-speed punching machine 4. Abrasive Water Jet Machining Process Water Jet Machining Process: Water Jet Machining is applicable for soft materials. Glass Cutting Waterjet Cutting Applications Ultra high-pressure waterjet precision cutting uses a high-speed water stream that carries great kinetic energy along with an abrasive substance.
The observed sizes of abrasive grains were compared with APPLICATION OF ABRASIVE WATER JET MACHINING IN FABRICATING MICRO TOOLS FOR EDM FOR PRODUCING ARRAY OF SQUARE HOLES 535-4 6), the work piece is stainless steel while for the later two titanium alloy work piece was used. Experimental Thermal and Fluid science 30 (2006) 337-343. A Husky 80 Gallon, 2-Stage, 5HP compressor delivers just over 15CFM at 90PSI, and they cost about $1,400. In this, no tool is used and the only nozzle is used to withstand higher pressures. Learn More. Waterjet cutting systems, much like other shape cutting systems, utilize computer-controlled motion and post-processing of tool paths to make precision cuts. Akkurt A 2010 Cut front geometry characterization in cutting applications of brass with abrasive water jet Journal of Materials Engineering Performance 19 599606. Abrasive water jet machining (AWJM) is a non-traditional technology widely used in industries for processing of materials. Abrasive jet machining is a non-traditional machining process which is mostly used in machining of hardened metals. Abrasive water jet turning (AWJT) method also becomes very popular for hybrid machining of metals as well as non-metals [70]. Whether a workpiece consists of a hard, soft, brittle or strong material, it should support abrasive jet machining.
Waterjet cutting is basically a supersonic erosion process, spraying out water at a rate upwards of 60,000 psi. Abrasive Blast Gun $32.99 #80 Aluminum Oxide - 8 LBS - Medium to Fine Sand Blasting Abrasive Media for Blasting Cabinet or Blasting Guns. Module 9, lesson 37, non-conventional machining, version 2 ME, IIT Kharagpur [4] A.A. Khan, M.M. Waterjet cutting systems, much like other shape cutting systems, utilize computer-controlled motion and post-processing of tool paths to make precision cuts. In abrasive jet machining, the material is removed by the erosive action of a high-velocity stream of fine abrasive particles transmit on the work surface. Abrasive water jet machining is a process that removes material using sand and water.
on surface roughness (Ra) and kerf taper ratio (TR) of aramid This technology is less sensitive to material properties as it fibre reinforced plastics (AFRP) composite. Removes discoloration on tooling without dulling the edges using a water cushion.
3. fused silica/fused quartz [3] Garnet sand [17] Jiangsu silicon quartz material factory .
The microscopy observations of the sidewalls of kerfs cut by the AWJ in several metal materials with an identical thickness of 10 mm are presented. The working principle of abrasive jet machining is the use of a high-speed stream of abrasive particles carried by a high-pressure gas or air on the work surface via a nozzle. The present research work deals with recycling and reusing of alumina grinding wheel waste as abrasive grain in abrasive water jet machining process (AWJM). Metals such as steel, stainless steel, Hastelloy, Hardox, Weldox, Inconel, titanium, aluminum or nonferrous metals.
In these processes , the mechanical energy of water and abrasive phases are used to achieve material removal or machining. Regarding water jet cutting they commented that fibers may be affected by water moisture. Water jet cutting come in a variety of shapes, sizes and styles with numerous features for a variety of applications. Compared to other high-energy beam processing methods, such as laser, ionic, or electron beam, ultra high-pressure waterjet is the only cold cutting technology. These include hydraulic unit, intensifier, accumulator, filters, water transmission lines, on/off valve, waterjet nozzles, abrasive waterjet nozzle, waterjet catchers, and fluid additives. Ease of programming and the jets ability to cut almost all materials and any thickness make it suitable for all shape cutting applications except extremely hard materials. Common applications of abrasive jet machining process are provided below.
Blast Pots & Cabinets. 20170501.11. to the intensifier from the reservoir with the aid of a hydraulic. It is one of the type of non conventional machining process for a hard materials. The abrasive water jet cutting has been identified as a single tool to machine different both metals and non-metals including composite and ceramic materials.
